Press Brake Tub Girder Standards
100 Year Service Life
AASHTO Approved Design
AASHTO Approved Fabrication
Simple Standard Details
Easy Installation

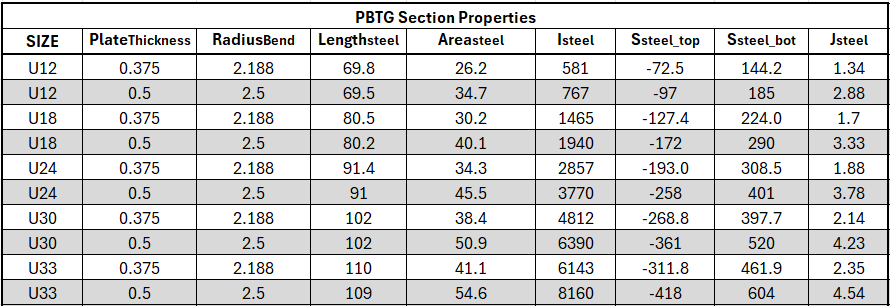

Five Standard Design Heights

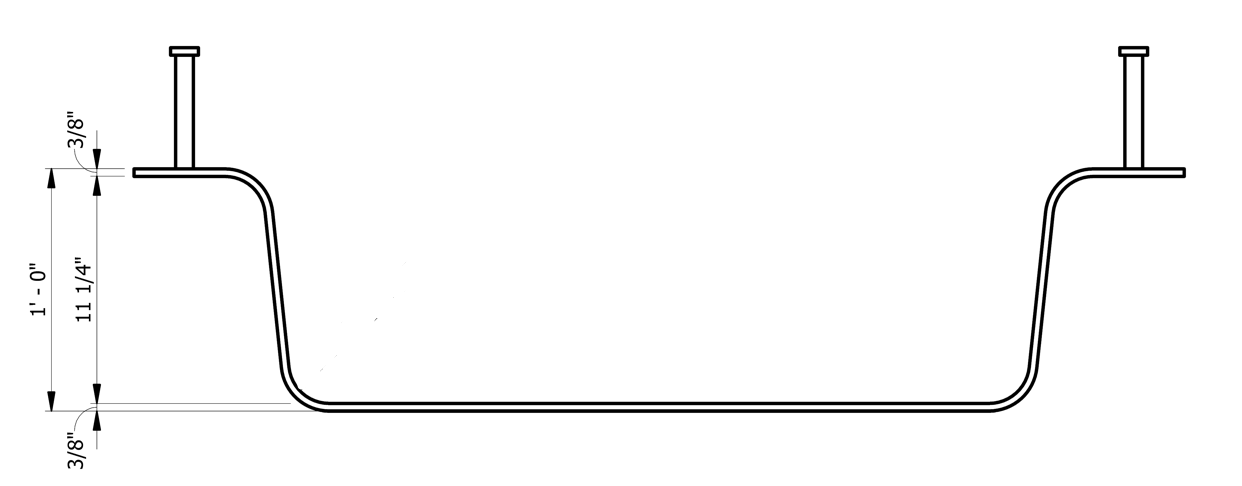

12” PBTG

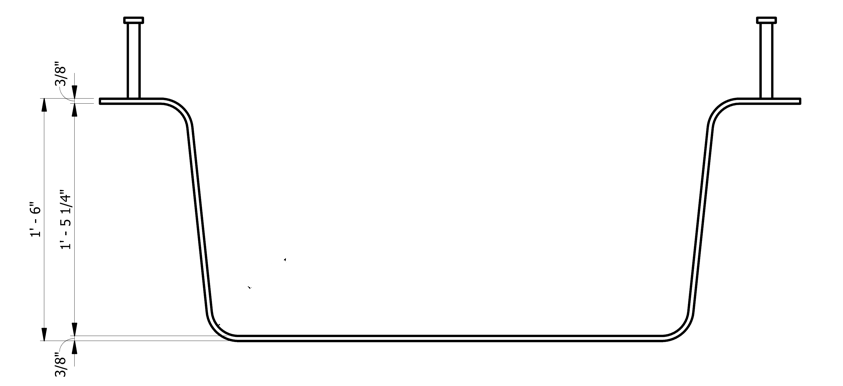

18” PBTG

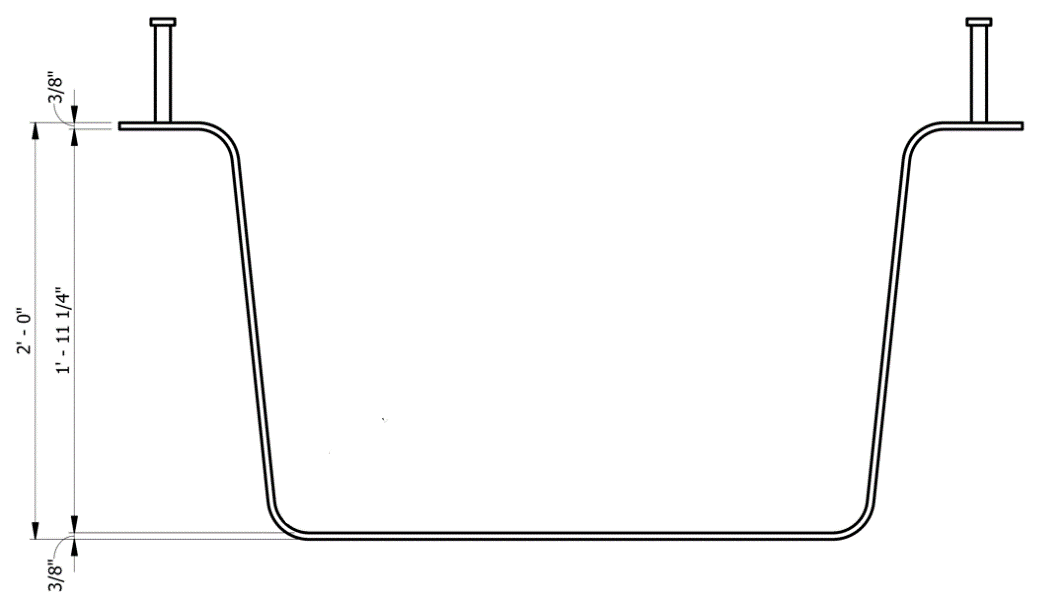

24” PBTG

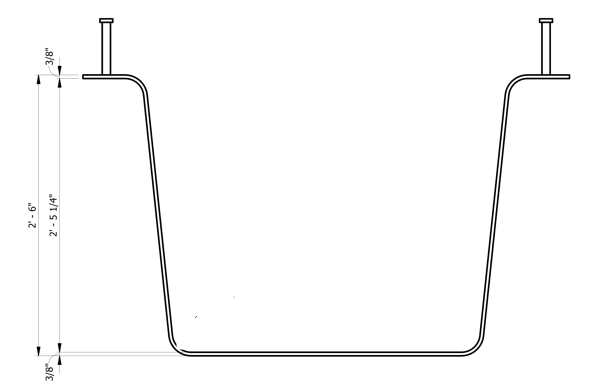

30” PBTG

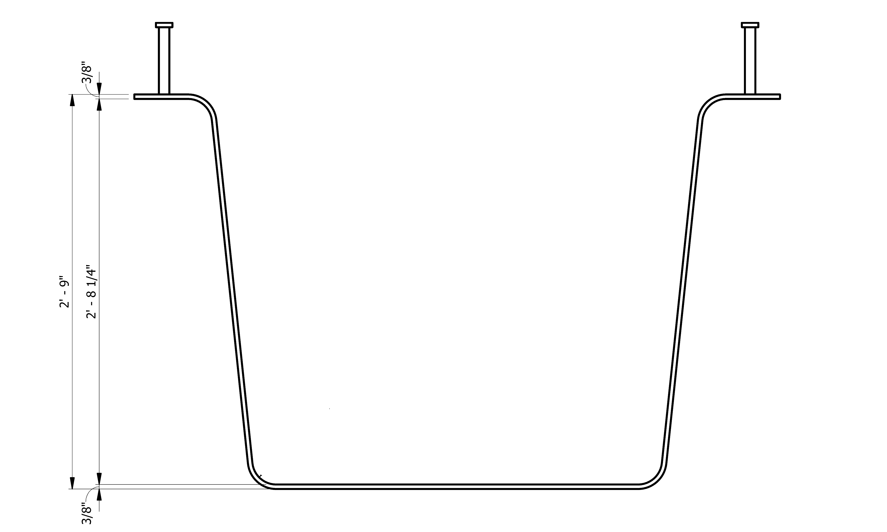

33” PBTG

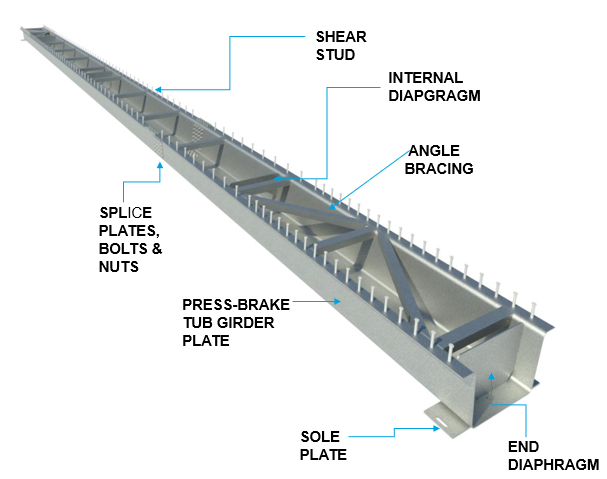

PBTG Components

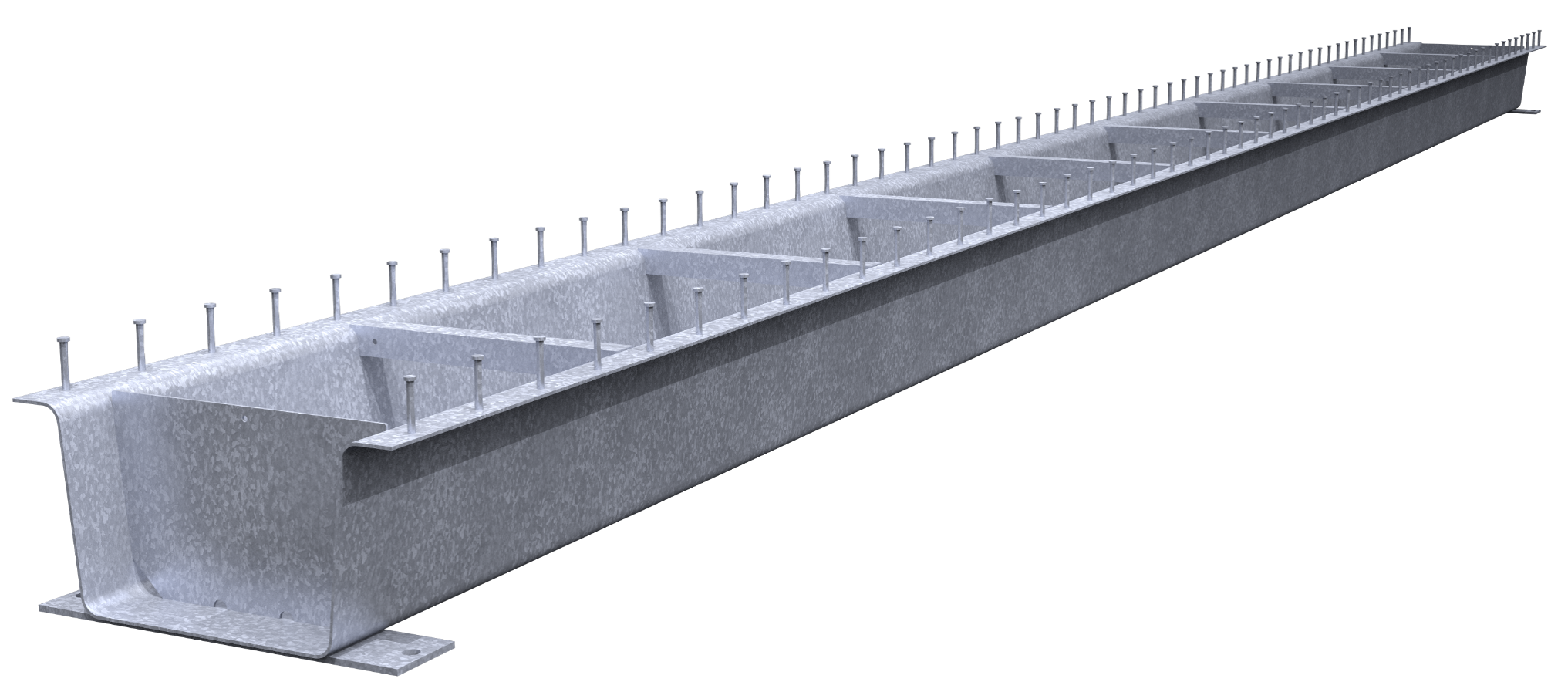

The Press Brake Tub Girder is a steel box section that is fabricated by a single steel plate intended for spans 120 feet long or less. The PBTG greatly reduces fabrication cost and time, eliminates fatigue critical weld inspection and, with the incorporation of a galvanized coating, extends the service life of this girder out to 100 years.

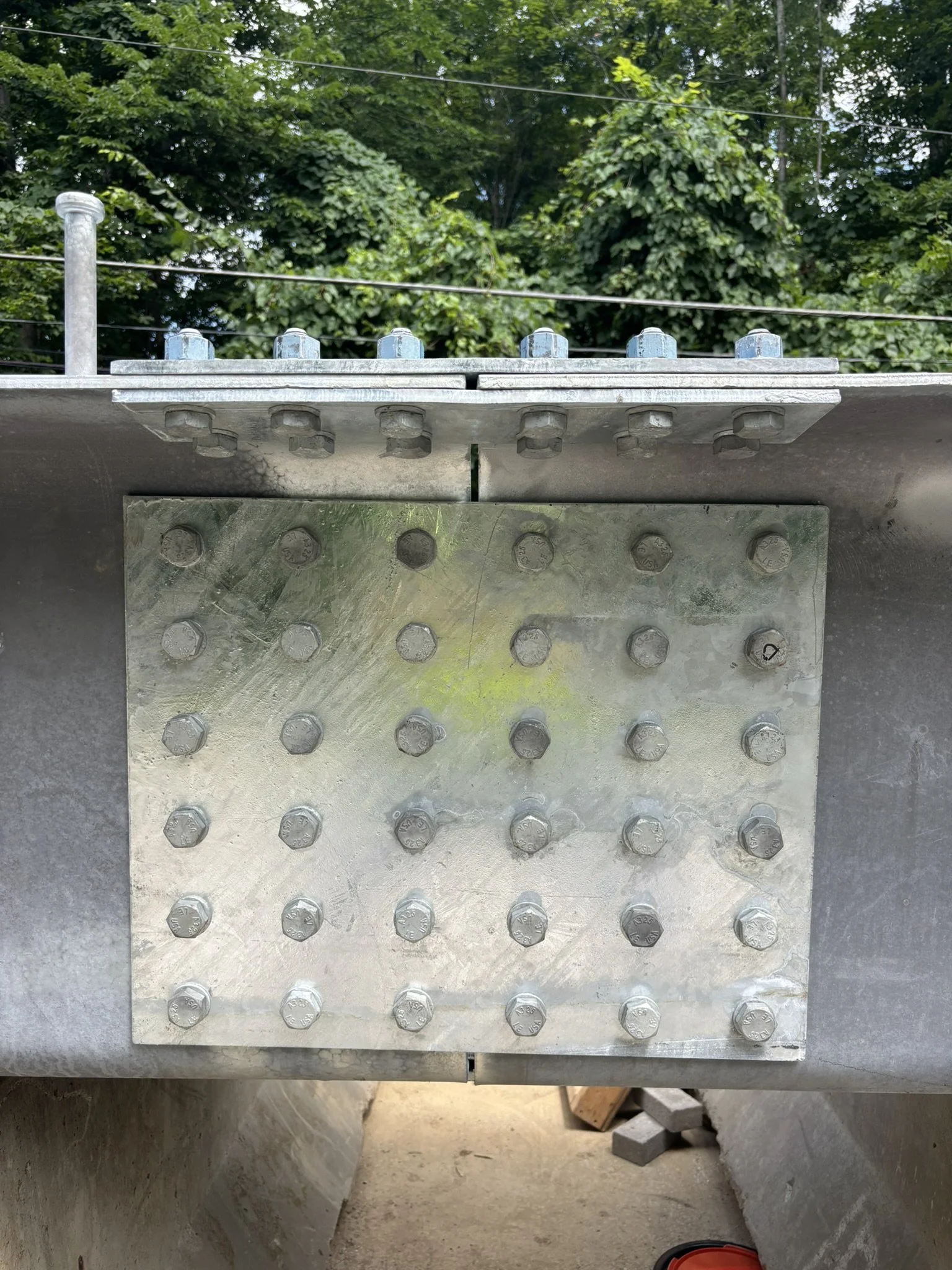

Bolted splice

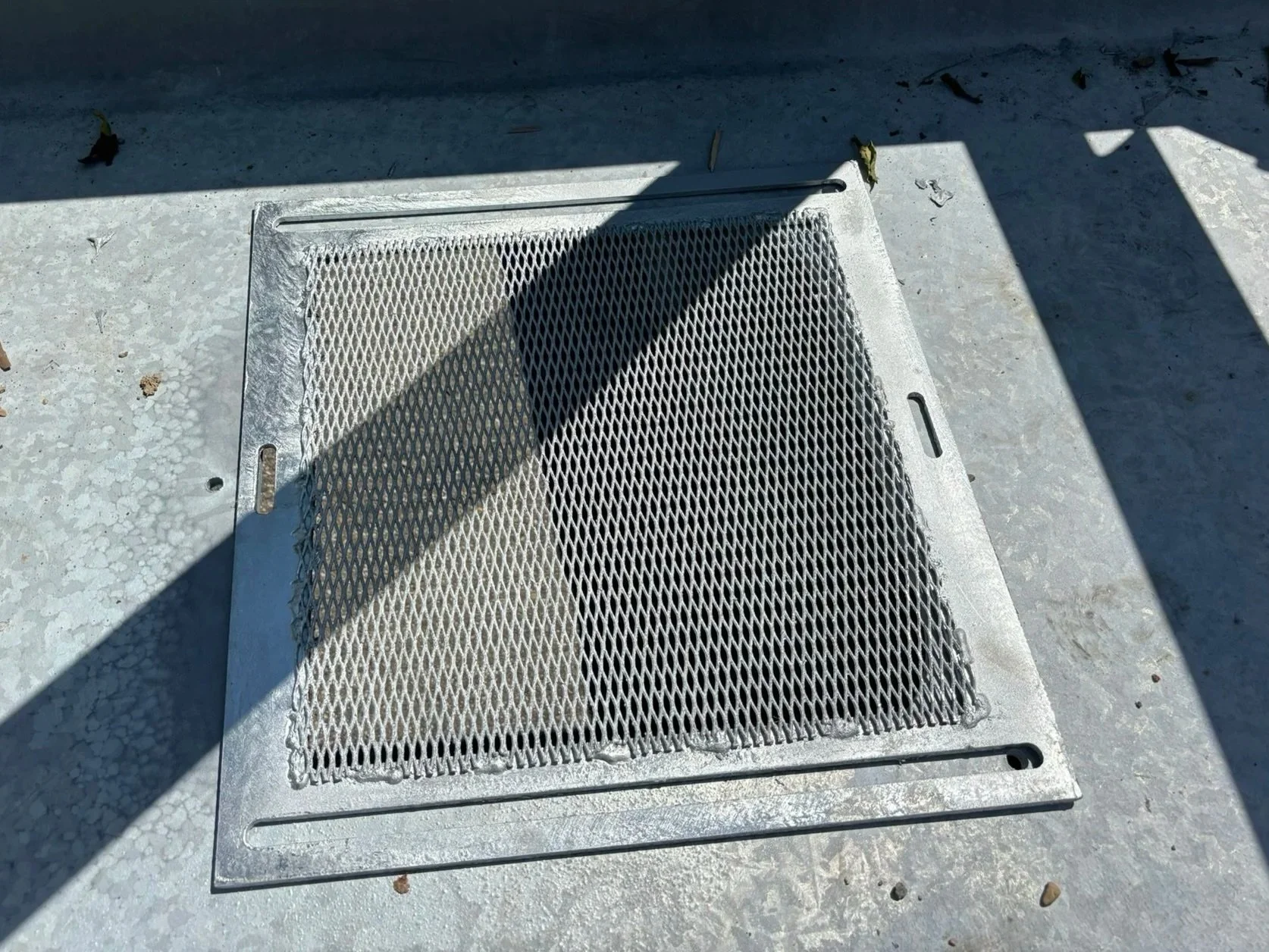

Inspection hatch cover

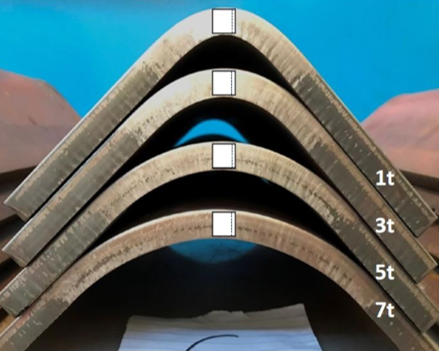

Cold-bent tub girder plate
A Press Brake Tub Girder is simply a new method of manufacturing a trapezoidal steel tub section. The “new” method utilizes fabrication methods that have been used successfully for over a hundred years.
Steel Beams Made simple
Where can I order press brake tub girders for my next short-span bridge project?
Nelson Bridge Systems is now engineering and manufacturing press brake tub girders. If you have an upcoming bid, ask us for a quote today, or check out our ongoing projects. For more updates, check our LinkedIn.
